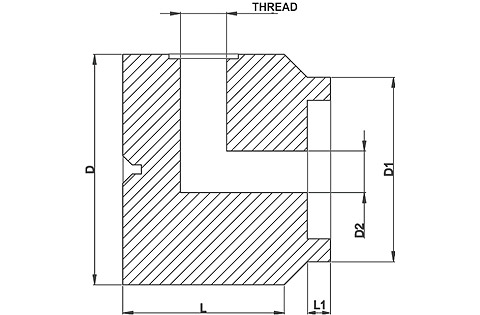

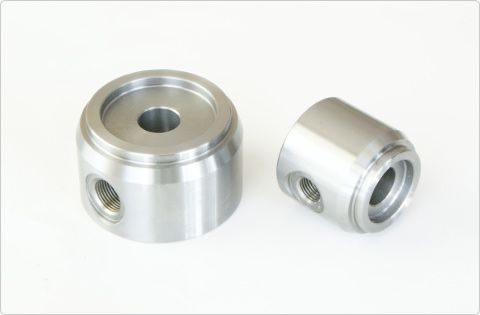

HYDRAULIC CYLINDER REAR PLUG WITH OIL HOLE |
 |
 |
| PRODUCT CODE | D | D1 | D2 | L | L1 | M-THREAD |
| GDC-AKR / Ø -40x50 | 50 | 40 | 14 | 40 | 5 | 1/4'' |
| GDC-AKR / Ø -50x60 | 60 | 50 | 18 | 40 | 5 | 3/8'' |
| GDC-AKR / Ø -60x70 | 70 | 60 | 18 | 40 | 5 | 3/8'' |
| GDC-AKR / Ø -63x75 | 75 | 63 | 18 | 40 | 5 | 3/8'' |
| GDC-AKR / Ø -70x85 | 85 | 70 | 18 | 40 | 5 | 3/8'' |
| GDC-AKR / Ø -80x95 | 95 | 80 | 18 | 40 | 5 | 3/8'' |
| GDC-AKR / Ø -90x105 | 105 | 90 | 24 | 40 | 5 | 3/8'' |
| GDC-AKR / Ø -100x115 | 115 | 100 | 30 | 40 | 5 | 1/2'' |
| GDC-AKR / Ø -110x130 | 130 | 110 | 30 | 40 | 5 | 1/2'' |
| GDC-AKR / Ø -120x140 | 140 | 120 | 30 | 40 | 5 | 1/2'' |
| GDC-AKR / Ø -125x150 | 150 | 125 | 40 | 40 | 5 | 1/2'' |
| GDC-AKR / Ø -130x150 | 150 | 130 | 40 | 40 | 5 | 1/2'' |
| GDC-AKR / Ø -140x160 | 160 | 140 | 40 | 40 | 5 | 1/2'’ |
