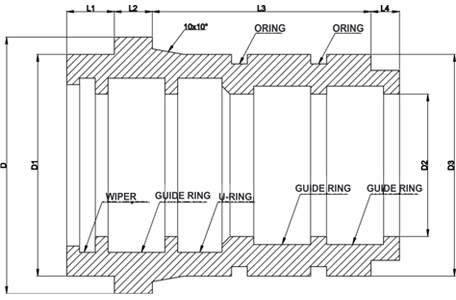

| PRODUCT CODE |
GUIDE RING |
U-RING |
WIPER |
ORING |
D |
D1 |
D2 |
D3 |
L1 |
L2 |
L3 |
L4 |
| GDC-RK / Ø -63x40 |
40x45x15-3 |
40x50x10 |
40x48x5/7 |
58x3,5 |
71 |
60 |
41 |
63 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -63x45 |
45x50x15-3 |
45x55x10 |
45x55x5/7 |
58x3,5 |
71 |
60 |
46 |
63 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -70x40 |
40x45x15-3 |
40x50x10 |
40x48x5/7 |
63x4 |
81 |
70 |
41 |
70 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -70x45 |
45x50x15-3 |
45x55x10 |
45x55x5/7 |
63x4 |
81 |
70 |
46 |
70 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -70x50 |
50x55x15-3 |
50x60x10 |
50x60x5/7 |
63x4 |
81 |
70 |
51 |
70 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -80x50 |
50x55x15-3 |
50x60x10 |
50x60x5/7 |
73x4 |
91 |
80 |
51 |
80 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -80x55 |
55x60x15-3 |
55x65x10 |
55x65x5/7 |
73x4 |
91 |
80 |
56 |
80 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -90x50 |
50x55x15-3 |
50x60x10 |
50x60x5/7 |
83x4 |
101 |
85 |
51 |
90 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -90x55 |
55x60x15-3 |
55x65x10 |
55x65x5/7 |
83x4 |
101 |
85 |
56 |
90 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -90x60 |
60x65x15-3 |
60x70x10 |
60x70x5/7 |
83x4 |
101 |
85 |
61 |
90 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -90x65 |
65x70x15-3 |
65x75x10 |
65x/75x5/7 |
83x4 |
101 |
85 |
66 |
90 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -100x60 |
60x65x15-3 |
60x70x10 |
60x70x5/7 |
93x4 |
111 |
90 |
61 |
100 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -100x65 |
65x70x15-3 |
65x75x10 |
65x/75x5/7 |
93x4 |
111 |
90 |
66 |
100 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -110x55 |
55x60x15-3 |
55x65x10 |
55x65x5/7 |
103x4 |
125 |
100 |
56 |
110 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -110x60 |
60x65x15-3 |
60x70x10 |
60x70x5/7 |
103x4 |
125 |
100 |
61 |
110 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -110x70 |
70x75x15-3 |
70x80x12 |
70x80x5/7 |
103x4 |
125 |
100 |
71 |
110 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -115x70 |
70x75x15-3 |
70x80x12 |
70x80x5/7 |
108x4 |
125 |
105 |
71 |
115 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -115x80 |
80x85x15-3 |
80x90x12 |
80x92x7/12 |
108x4 |
125 |
105 |
81 |
115 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -120x60 |
60x65x15-3 |
60x70x10 |
60x70x5/7 |
113x4 |
135 |
110 |
61 |
120 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -120x70 |
70x75x15-3 |
70x80x12 |
70x80x5/7 |
113x4 |
135 |
110 |
71 |
120 |
15 |
12 |
68 |
10 |
| GDC-RK / Ø -120x80 |
80x85x15-3 |
80x90x12 |
80x92x7/12 |
113x4 |
135 |
110 |
81 |
120 |
15 |
12 |
68 |
10 |
